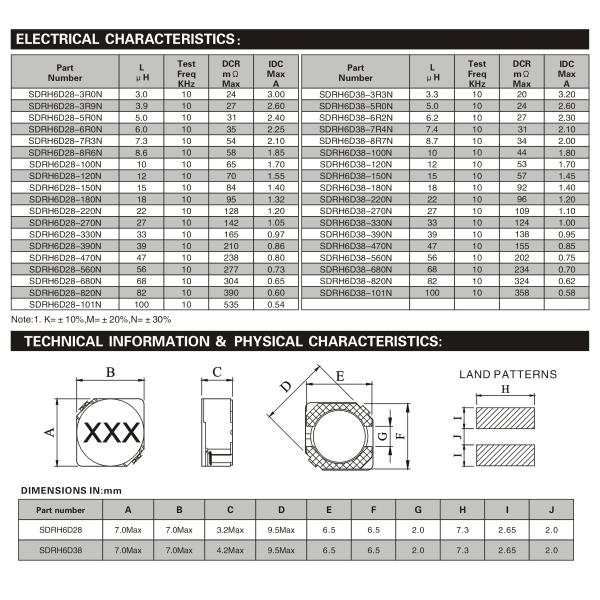

Ferrite Surface Mount Power Inductors Single Coil ISO 9001 Certification

SDRH6D28/6D38 Series Low price and high quality smd power choke coil ,SMD shielded inductors

1. Its mechanical strength and thermal stability is good enough to bear the temperature changes from the reflow soldering and the outside force. It is mini size, high energy-stored, low resistance makes itself an ideal inductor when used in the PDA, DC/DC switches. Be suitable to work in the big current condition.
2. Current up to 3.2A

APPLCATIONS:

1. Video Digital Cameras
2. Communication System
3. Automotive Systems Power supplier
4. LCD PDP Televisions
5. Hard Disk Drives, Topset, XDSL
6. Network Systems
7. Computer Peripheral Equipmen

TEST EQUIPMEN AND CONDITIONS:

1. Inductor Testing: HP4284A (Equivalent acceptable)
2. DCR:QuadTech 1880 Milliohmmeter
3. IDCMax current is decreased 10% against its initial value
4. Operating temperature: -40℃ to +105℃
5. Storage Temperature: -40℃ to +105℃
6. Solder methods: Vapor Phase,Infrared Reflow
7. Resistance to soldering heat:260℃ for 10 seconds

Note: Product specifications can be customized.Custom inductance values are available.
