RoHS Compliant Choke Coil Inductor With Case Excellent EMI Performance

Name: RoHS Compliant Choke Coil Inductor With Case Excellent EMI Performance
Brand: Shinhom
Price: 1 USD

Wholesale RoHS Compliant Choke Coil Inductor With Case Excellent EMI Performance from china suppliers

Brand Name : Shinhom

Model Number : STRF016 Series

Certification : RoHS

Place of Origin : China

MOQ : 5000PCS

Packaging Details : Carton

Delivery Time : 4~8 Weeks

Payment Terms : T/T

Supply Ability : 100000/MONTH

Price : Negotiation

Inductance : 135uH~820uH

Rated current : 7A~26A

Installation : SMT

Inductor Value : Fixed Inductor

Operate temperature : -40 ℃to + 125℃(Including self temperature rise)

Storage temperature : -40 ℃to + 125℃

Contact Now

STRF016 Seires High current power common mode inductor,Surface Mounted Common Mode Choke Inductor with case,Horizontal

FEATURES:

· Designed for DC/DC converters
· Wide variety of inductor sizes and current ratings are available
· Carrier tape packing used for SMT
· Magnetically shielded construction
· Suitable for reflow SMT Craft soldering.
· Lead free products, RoHS compliant.

· Common mode chokes for AC Power lines
· High impedance to minimize common mode noise
· Excellent EMI performance
· Operate temperature range :-40 ℃to + 125℃(Including self temperature rise)
· Storage temperature range: -40℃to +125℃

COMMON APPLICATIONS:

· DC/DC, AC/DC converter
·Filter and Noise suppression
· Communication System
· Automotive Systems
· Liquid Crystal Televisions

TECHNICAL INFORMATION:

·IDC: Temp. rise 40℃ Max
·lnductance test: HP4284A 100KHz 0.1V
·RDC:QuadTech 1880 Milliohmmeter
·Solder methods: Vapor Phase, Infrared Reflow
·Resistance to soldering heat:260℃ for 10 seconds
·Solvent resistance: Conforms to MIL-STD-202E
·Weight------------------1.5grams TYP
·Tape & Reel--------------700/reel

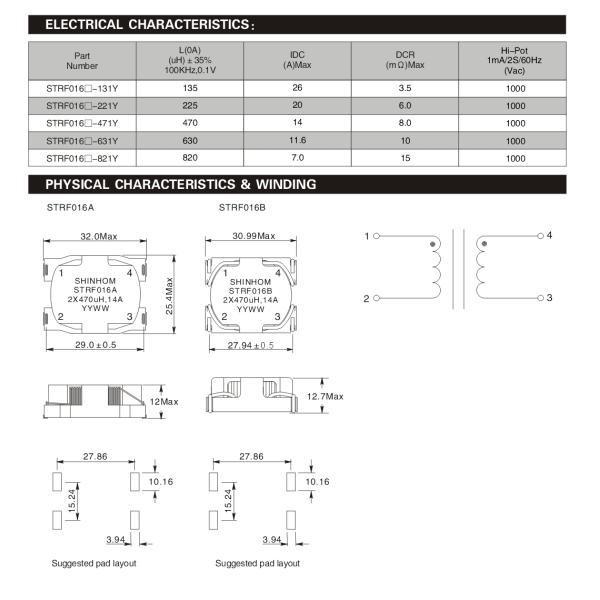

RoHS Compliant Choke Coil Inductor With Case Excellent EMI Performance

More sizes to choose from

Note: Product specifications can be customized.
